VW Golf R Mk6Stage 1 to Stage 4 tuning guide

The first Golf R has the 2.0 TFSI EA113 with a factory K04 turbo and four-wheel drive. VW gave it a reinforced block, stronger rods and uprated pistons (VW UK's press kit), and the same tunes cover the Audi TTS. European cars make 270 PS (VW); US cars were rated at 256 hp (VW US), and BAR-TEK lists the Middle East under that 256 hp version (its engine-code list), so check which engine your car has.

Years: 2010–2013
Engine: 2.0 TFSI EA113 with a K04 turbo (CDLF in Europe)
Gearbox: 6-speed manual or 6-speed DSG (DQ250); 4MOTION
Stock power: 270 PS / 350 Nm; US 256 hp / 243 lb-ft

Power by stage

Stock is VW's figure: 256 hp in the US, 270 PS in Europe. Stage 1 to 4 are the tuners' own claims at the engine, on 95–98 octane where they say; the higher figures some list on 100–108 octane are left out because Israeli pumps don't sell it. Past about 400 hp the engine needs new rods and more fuel.

Stock256–270 hp / PS

Stage 1295–321 hp Stage 2311–362 hp Stage 3370–450 hp Stage 4400–500+ hp

Names with an arrow go straight to that part's product page for this car. Names in a dashed outline are other brands that make the part; exact links for them are being added.

1

Software only

295–321 hp

A remap claims about 295–321 hp on 95–98 octane, with torque rising from 350 Nm to about 400–470 Nm. The Bosch MED9 engine computer is flashed through the diagnostic port. APR measured a stock car at 273 hp, a little above VW's figure.

Typical cost: remaps $366.95 on sale (APR), $449 (IE), $475 (034) or €590 (BR-Performance); DSG software $425–$450 (034) or €400; plug-in boxes €429 on sale (RaceChip) or €799 (DTE).List prices, Sept 2026, before shipping, import tax and fitting.

Stage 1 tunes compared

Tune	Fuel	Claimed power	Claimed torque	Notes
APR Stage 1	95 / 98 RON	302 / 310 hp	297 / 311 lb-ft	Engine power; $366.95 on sale; also covers the Audi TTS
IE Stage 1	95 / 98 RON	312 / 321 hp	336 / 345 lb-ft	$449; for cars with the factory K04 only
Unitronic Stage 1	95 RON	295 hp	300 lb-ft	19 psi; Stage 1+ claims 305 hp on 98
RacingLine Stage 1	—	314 PS	420 Nm	Also covers the Scirocco R, S3 8P and TTS
BR-Performance Stage 1	—	310 hp	420 Nm	€590
REVO Stage 1	—	300–315 PS	318–333 lb-ft	Dealer only
034 Motorsport Stage 1	91 AKI	299 hp	317 lb-ft	$475; made for US 91 fuel
RaceChip GTS 5	—	+71 hp	+95 Nm	Plug-in box; €429 on sale
DTE PowerControl X	—	+39 PS	+70 Nm	Plug-in box; €799

Tune the DSG too

VW says it used the 6-speed DSG because it "can be paired with high torque engines (up to 350 Nm)", and every Stage 1 above runs more. Gearbox software raises its torque limits: 034 Motorsport ($425–$450; "500 Nm typical" at its Stage 2), Unitronic, REVO and BR-Performance (€400). RacingLine calls a gearbox tune "essential for Stage 2 or above".

Before you buyCheck the high-pressure fuel pump's cam follower first: CTS says to look at it every 30,000–33,000 km on a stock car and sells the VW part for $29.99 (its page). And check your engine: a Middle East or US car has the 256 hp version, so ask for the file made for it.

2

Downpipe, fuel pump and intercooler

311–362 hp

Stage 2 adds a 3-inch downpipe, and most files also want an uprated high-pressure fuel pump. APR's Stage 2+ claims 351 hp on 95 and 362 hp on 98; IE's Stage 2 claims 344 and 353 hp and requires its own pump.

Typical cost: fuel pump $337 (034 piston kit) or $1,348.95 on sale (APR); downpipe €607.06 before VAT (BAR-TEK); intercooler €462.14 (BAR-TEK) or $849 before VAT (Wagner); cat-back £793.92–£1,027.03 (Scorpion, Milltek).List prices, Sept 2026, before shipping, import tax and fitting.

Stage 2 files compared

Package	Fuel	Claimed power	Claimed torque	Required hardware
APR Stage 2+	95 / 98 RON	351 / 362 hp	349 / 370 lb-ft	Downpipe and APR fuel pump
IE Stage 2	95 / 98 RON	344 / 353 hp	401 / 410 lb-ft	Downpipe and IE fuel pump; $499
Unitronic Stage 2	98 RON	335 hp	340 lb-ft	Its 3-inch downpipe; 345 hp with an uprated pump
RacingLine Stage 2	—	342 PS	465 Nm	Downpipe and intake
BR-Performance Stage 2	—	330 hp	430 Nm	Price by email
REVO Stage 2 / 2+	—	315–370 PS	323–360 lb-ft	Intake, turbo-back with high-flow cat, intercooler; fuel pump for 2+
034 Motorsport Stage 2 / 2+	91 AKI	311 / 315 hp	323 / 345 lb-ft	Downpipe, intake, intercooler; $500–$550

Parts list

Downpipe required Unitronic 3-inch AWD downpipe with cat BAR-TEK 3-inch downpipe with catHJSCTS Turbo
BAR-TEK's costs €607.06 before VAT but has "No approval"; IE says a downpipe sets a warning light. We couldn't confirm an ECE-approved downpipe for this car.
High-pressure fuel pump required APR fuel pump 034 Motorsport piston kit
APR's Stage 2+, IE's Stage 2 and 034's Stage 2+ all need one. Replace the cam follower with any new pump.
Intercooler recommended Wagner Competition Gen.2 BAR-TEK intercooler (TÜV option)APR intercooler
Wagner's lists the Golf 6 R and costs $849 before VAT; BAR-TEK's is €462.14, or €504.12 with a TÜV certificate. Forge's Golf R intercoolers are discontinued.
Intake and boost pipe optional Unitronic intake RacingLine intake (via 034)BAR-TEK boost pipe
BAR-TEK warns the factory plastic boost pipe can burst once the car is tuned; its metal one is €161.43.
Catch can optional APR catch can
APR calls the factory PCV "failure prone" and a cause of carbon on the intake valves.
Cat-back exhaust optional Milltek cat-back Milltek cat-back (US)Scorpion cat-back
Milltek UK's is £1,027.03 and Scorpion's £793.92; they change the sound more than the power.

Before you buyA downpipe without an approved catalyst won't pass inspection. 034 recommends an uprated clutch on manual cars at Stage 2.

3

Hybrid K04 and fuel

370–450 hp

Stage 3 swaps the K04 for a hybrid built on it. APR's Stage 3 file for the TTE420 turbo claims 392 hp on 95 and 400 hp on 98, with its wastegate spring, fuel-rail valve, fuel pump and plugs. BAR-TEK says its 420 and 480 hp kits "absolutely need reinforced conrods".

Typical cost: hybrid turbo €2,100–€2,226.50 before VAT (TTE) or €2,562.98 for BAR-TEK's kit; APR low-pressure pump $808.95 and injectors $1,258.95 on sale; twin-disc clutch €2,004.83 (TTE).List prices, Sept 2026, before shipping, import tax and fitting.

Turbo upgrades compared

Kit	Fuel	Claimed power	Claimed torque	Notes
APR Stage 3 (TTE420)	95 / 98 RON	392 / 400 hp	from 401 lb-ft	TTE420, APR wastegate spring, rail valve, fuel pump and plugs
TTE420 hybrid	—	"420+ PS proven"	—	€2,100 before VAT; needs software
TTE480+ hybrid	99 RON	"450hp+ proven"	—	€2,226.50 before VAT
BAR-TEK V2 kit	—	up to 420 hp	—	€2,562.98 before VAT; V3 kit up to 480 hp
REVO Stage 3	—	400–435 PS	380–410 lb-ft	Dealer only
BR-Performance Stage 3	—	370 hp	450 Nm	Price by email

Parts list

Hybrid turbo required TTE turbos for the Golf R Mk6 BAR-TEK / Turbo-Total kit
APR's Stage 3 file is written for the TTE420.
More fuel required APR low-pressure pump and injectors
APR sells an AWD low-pressure pump ($808.95 on sale) and high-flow injectors ($1,258.95 on sale) for this car.
Clutch and four-wheel drive recommended TTE twin-disc clutch (950 Nm)Haldex Gen4 controller
TTE's clutch lists the Golf VI R; the plug-and-play Haldex controller, €799 before tax, changes how much drive goes to the rear.

Before you buyA changed turbo and exhaust aren't road-legal without approval. Budget for rods: BAR-TEK and Unitronic both call for stronger ones at this power.

4

Big turbo and built engine

400–500+ hp

Unitronic says "for over 400HP you need a built engine" and water-methanol above 500 (its big-turbo file). APR's big-turbo kit for this engine is discontinued (its page), so the kits still sold come from CTS Turbo.

Big-turbo options compared

Kit or file	Fuel	Claimed power	Claimed torque	Notes
CTS Turbo BOSS500 kit	—	400–500 hp	—	$2,599.99; Golf R needs a diverter-valve block-off; not for right-hand drive
CTS Turbo BOSS600 kit	—	500–600 hp	—	$2,899.99; needs a built engine and more fuel
Unitronic big-turbo file	91–93 AKI	up to 500 hp	—	GT30–GT35 turbos, TT RS injectors and low-pressure pump
REVO Stage 4	—	400–497 PS	380–460 lb-ft	Dealer only
BAR-TEK race engine	—	"over 600 hp"	—	€15,125.21 before VAT; "no warranty"; gearbox "should be reinforced"

Parts list

Built bottom end required BAR-TEK race engineCTS Turbo rodsJE pistons
VW's own rods are stronger than the GTI's, but every tuner still calls for forged ones past about 400 hp.

Before you buyThis is a race-engine budget: the turbo kit is only part of it. Plan for the engine, fuel, clutch or DSG, the four-wheel-drive system and a custom map.

Watch: real builds

From tuners', shops' and motoring journalists' own YouTube channels. Nothing loads from YouTube until you press play.

Stage 1An owner fits IE's Stage 1+ tune to a Mk6 Golf RRisky Garage on YouTube

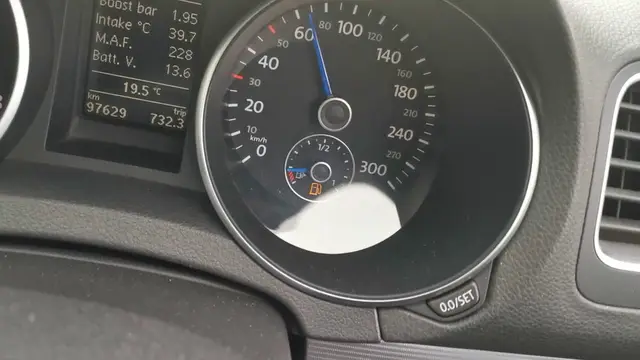

Stage 2CO Motorsports on the dyno: a Mk6 Golf R near stock against Stage 2+CO Motorsports on YouTube

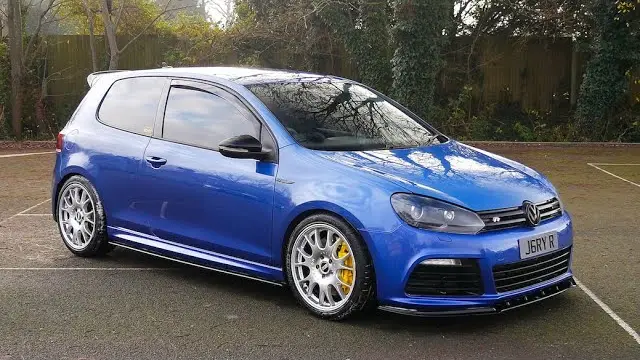

Stage 2A 367 hp Stage 2+ Mk6 Golf R on the roadhampshirephoto on YouTube

Stage 3A Mk6 Golf R with a TTE420 turbo and an APR file, acceleratingjackies83 on YouTube

Stage 4A 500 hp Mk6 Golf R with a GTX big-turbo swapClay Wong on YouTube

All build videos, by car

Questions to ask the shop

Is my car the 270 PS or the 256 hp version, and does your file fit its engine computer's box code?
Is the file made for 95 or 98 octane, and do your dyno figures show engine or wheel power?
When were the cam follower and timing belt last changed, and will you check the follower before tuning?
Which downpipe do you fit, does it have an approved catalyst, and will the car pass inspection with no warning light?
On a DSG, will you tune the gearbox, and to what torque? On a manual, which clutch do you recommend?
For Stage 3 or 4, which pumps, injectors and rods do you require, how will you set up the four-wheel drive, and what warranty do you give?
