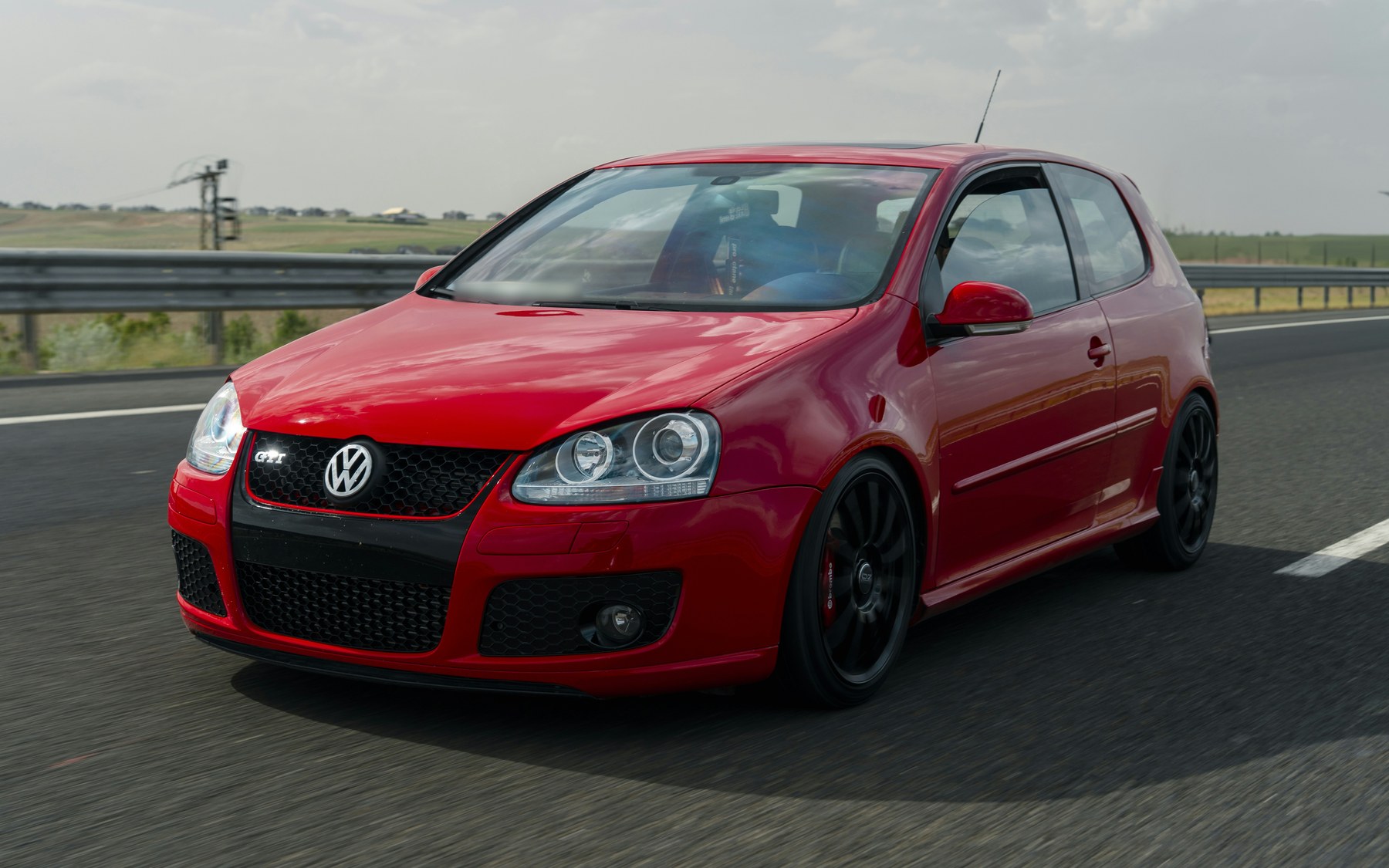

VW Golf GTI Mk5Stage 1 to Stage 4 tuning guide

A remap on the 200 PS car claims 235–260 hp, and torque rises from 280 Nm to about 350–415 Nm. The Bosch MED9 engine computer is flashed through the diagnostic port. APR and Unitronic publish figures for 95 octane, the fuel most Israeli pumps sell.

Typical cost: remaps $366.95 on sale (APR), £418.80 (REVO, at Vagtech), €550 (BR-Performance) or £250 on sale (Superchips); DSG software $425–$549.95 or €400; plug-in box €369 on sale (RaceChip).List prices, Sept 2026, before shipping, import tax and fitting.

Stage 1 tunes compared (200 PS car)

Edition 30 and Pirelli: these need their own K04 file. REVO's claims 300–315 PS and 431–451 Nm (£538.80 at Vagtech), BR-Performance claims 290 hp and 400 Nm for €590, and Superchips tested 305 bhp.

Tune the DSG too

VW's training booklet for the DQ250 (Self-Study Programme 308) gives it a maximum of 350 Nm, and most Stage 1 files run more. Gearbox software raises the clutch torque limits: APR ($549.95; its list says "GTI 08-14", so check the box code on 2006–2007 cars), REVO, 034 Motorsport ($425–$450) and BR-Performance (€400).

Stage 2 adds a 3-inch downpipe and a Stage 2 file. With an uprated high-pressure fuel pump as well, APR's Stage 2+ claims 278 hp on 95 octane and 285 hp on 98. On the Edition 30, REVO's Stage 2+ file claims 330–370 PS (its page).

Typical cost: downpipe $399.99 (CTS, no cat) or $599.99 (IE, with cat); fuel pump $295.96–$1,348.95 (Autotech, 034, IE, APR); intercooler $849 before VAT (Wagner), $989.99 (IE) or £805.10 (Forge); intake $299.99–$439.99.List prices, Sept 2026, before shipping, import tax and fitting.

Stage 2 files compared (200 PS car)

Parts list

• Downpipe required IE 3-inch downpipe with 200-cell catUnitronic 3-inch downpipe with catMilltek turbo-back with HJS catCTS Turbo race downpipe (no cat)

  IE's costs $599.99. CTS's race pipe has no catalyst and needs Stage 2 software.

• High-pressure fuel pump recommended APR fuel pumpIE fuel pump034 Motorsport piston kitAutotech kit

  Needed for the Stage 2+ files. Fit a new cam follower with any pump; Autotech says to "always replace the cam follower when installing".

• Intercooler recommended Wagner Competition Gen.2IE FDS intercoolerForge front-mount intercoolerAPR intercooler

  Wagner's fits the Edition 30 too and costs $849 before VAT. Forge's twin-intercooler kits are discontinued.

• Intake optional CTS Turbo intakeIE cold air intakeUnitronic intake

  CTS claims 9–15 hp at the wheels on a stock car.

• Catch can optional 034 Motorsport catch can

  Direct injection lets oil deposits build up on the intake valves; 034 says its can "reduces carbon buildup".

• Cat-back exhaust optional AWE cat-backMilltek resonated cat-backScorpion cat-back

  It changes the sound more than the power: AWE measured a peak gain of 3.1 hp at the wheels.

The classic Mk5 Stage 3 is the K04 turbo from the Audi S3 and Edition 30, with the S3's injectors and an uprated fuel pump. APR's K04 kit comes with software and claims 320 hp on 95 octane and 323 hp on 98. It only applies to the 200 PS car; the Edition 30 already has the K04, and BR-Performance's Stage 3 for it claims 370 hp.

Typical cost: K04 turbos €1,109.20 before VAT (Turbo-Total), $1,499.99 (CTS) or €1,595.80 before VAT (TTE350+); APR's K04 kit with software $3,553.95 on sale; plus S3 injectors and a fuel pump.List prices, Sept 2026, before shipping, import tax and fitting.

Turbo upgrades compared (200 PS car)

Parts list

• K04 or hybrid turbo required APR K04 kitUnitronic K04 kitTurbo-Total K04-064TTE350+CTS Turbo K04

  APR and Unitronic include the software; the others need a matching file.

• S3 injectors and fuel pump required OEM S3 injectors 06F906036FAPR fuel pumpIE fuel pump

  APR, Unitronic and REVO all list both for their K04 files.

• Clutch recommended TTE twin-disc clutch (950 Nm)034 DSG Stage 2 software (DSG cars)

  REVO recommends an uprated clutch at Stage 3. On a DSG, 034's Stage 2 gearbox file allows "500nm typical".

Past about 350 hp the stock rods are at risk. Integrated Engineering says they have "a very narrow beam design that leads to bent rods under high torque loads", and recommends new rods from about 350 hp and rods and pistons above 400 hp (its guide). REVO's big-turbo file claims 398–438 PS with a 3071R turbo, RS4 injectors and a 3-inch exhaust.

Big-turbo options compared

Parts list

• Forged rods and pistons required IE drop-in rods 144x20JE forged pistons

  IE's rods cost $542.99 and fit the stock 20 mm pistons; JE's pistons are $734.99.

• More fuel required IE port-injection kitTT RS low-pressure pump

  REVO and Unitronic call for bigger injectors and a TT RS low-pressure pump; IE's port-injection kit adds a second set of injectors.
